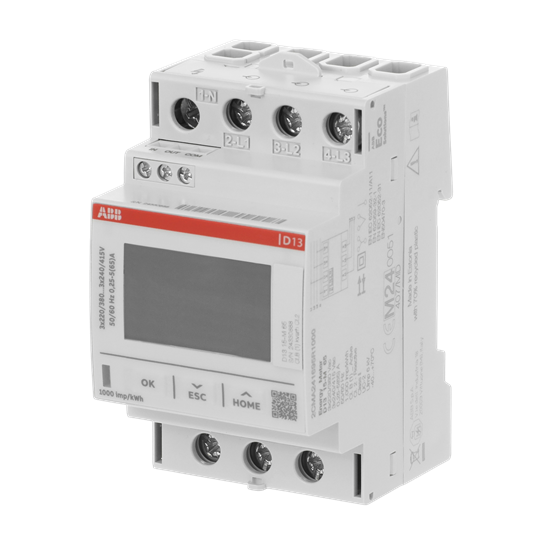

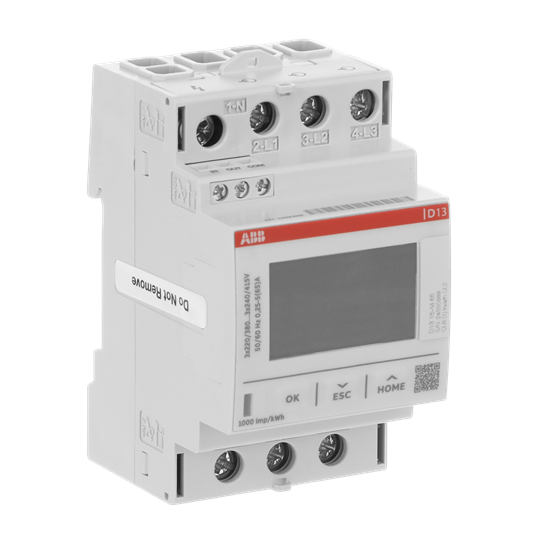

Drehstromzähler 65A, MID, 1DO+1DI
ABB STOTZ-KONTAKT
Produktinformationen Drehstromzähler 65A, MID, 1DO+1DI
Dreiphasiger Energiezähler mit MID-Zertifizierung aus 70% recyceltem Kunststoff zur Erfassung von Energie, Strom, Spannung, Leistung und Frequenz. Messung von Energieverbrauch und Erzeugung und Wirk-, Blind- und Scheinenergie. Mit 1 digitalen Eingang und 1 digitalen Ausgang (Nutzung als Impuls- oder Alarmausgang).
| Accuracy class: | B |
|---|---|
| Approval: | Measuring Instruments Directive |
| Degree of protection (IP): | IP20 |
| Depth: | 65 mm |
| Frequency: | 50–60 Hz |
| Height: | 97 mm |
| Max. current (Imax): | 65 A |
| Model: | Direct measurement |
| Mounting method: | DRA (DIN-rail adaptor) |
| Nominal current (In): | 65 A |
| Number of positions total (counter): | 7 |
| Pole type: | Four conductor |
| Power consumption: | 0.82 W |
|---|---|
| Pulse output: | Electrical |
| Pulse rate: | 1–9999 Imp/kWh (kvarh) |
| Pulse type: | S0 |
| Tariff control: | External |
| Tariff type: | Multi-tariff |
| Type of indication: | Digital |
| Type of interface: | Other |
| Width: | 52.5 mm |
| Width in number of modular spacings: | 3 |
| With lock code: | Yes |
