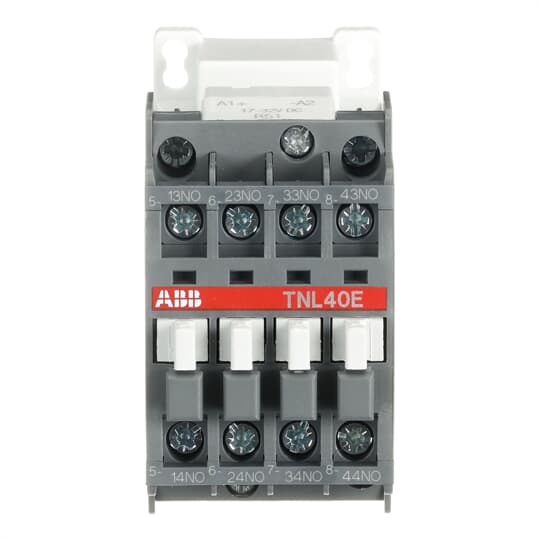

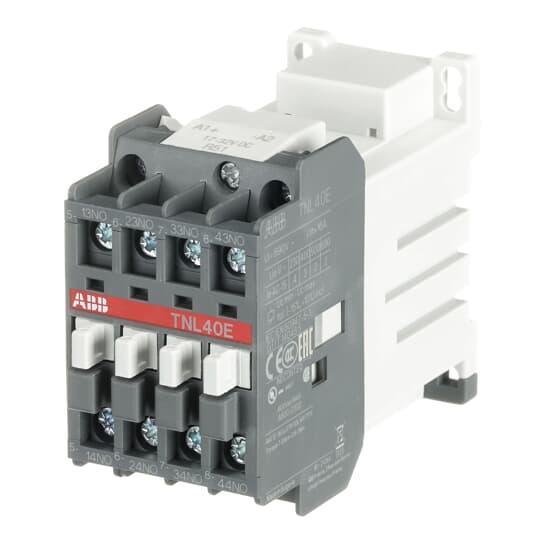

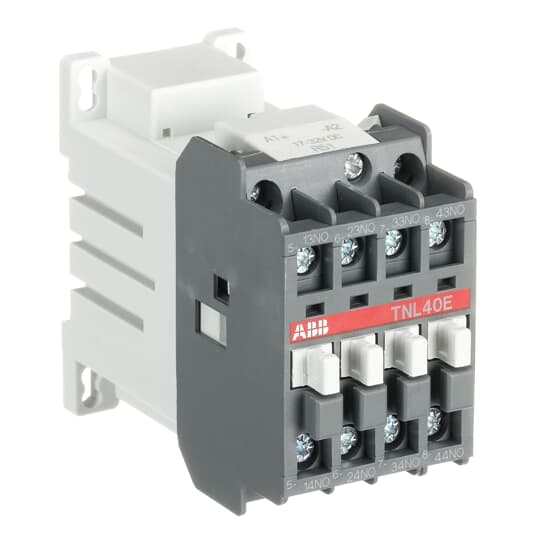

Hilfsschütz, 17-32 V DC, 4S, mit Bahnzulassung
ABB STOTZ-KONTAKT
Produktinformationen Hilfsschütz, 17-32 V DC, 4S, mit Bahnzulassung
TNL40E Hilfsschütze werden zum Schalten von Hilfs- und Steuerstromkreisen verwendet.
- Pole: 4-polige Hilfsschütze.
- Steuerstromkreis: Gleichstrombetrieb mit Dauermagnetkreis und Weitspannungsbereich.
Die Polarität an den Spulenanschlüssen (A1+ und A2-) muss beachtet werden.
- Zubehör: Es steht eine breite Palette von Zubehör zur Verfügung.
Diese Schütze besitzen eine Bahnzulassung.
| Depth: | 97 mm |
|---|---|
| Height: | 78 mm |
| Number of auxiliary contacts as normally closed contact (NC): | 4 |
| Number of auxiliary contacts as normally open contact (NO): | 4 |
| Number of normally closed contacts (NC) as main contact: | 0 |
| Number of normally open contacts (NO) as main contact: | 0 |
| Operating voltage DC: | 690–690 V |
|---|---|
| Rated control supply voltage DC: | 17–32 V |
| Suitable for distribution board: | No |
| Type of electrical connection of main circuit: | Screw connection |
| Voltage type for actuating: | DC |
| Width: | 44 mm |
