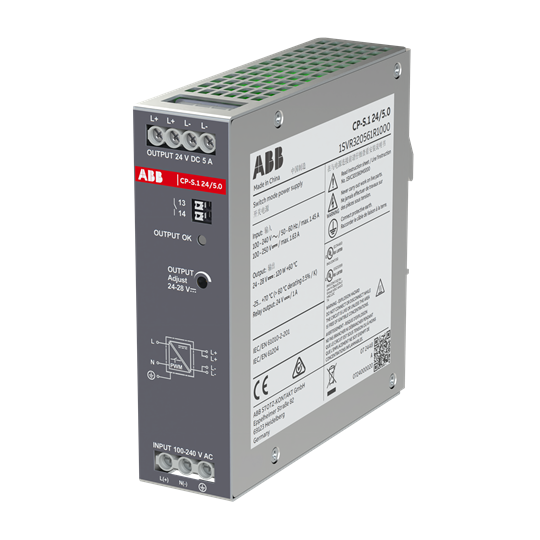

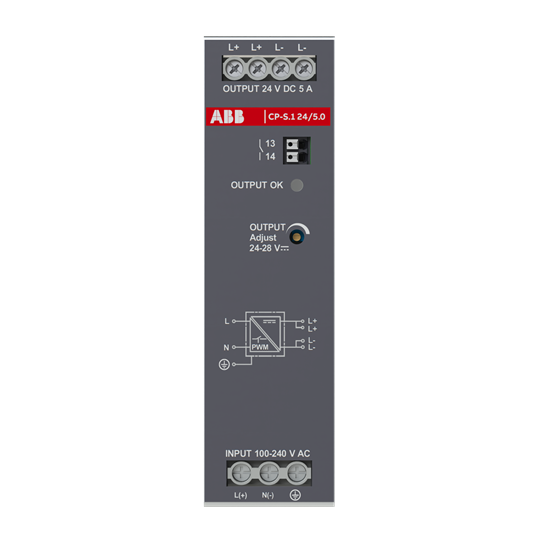

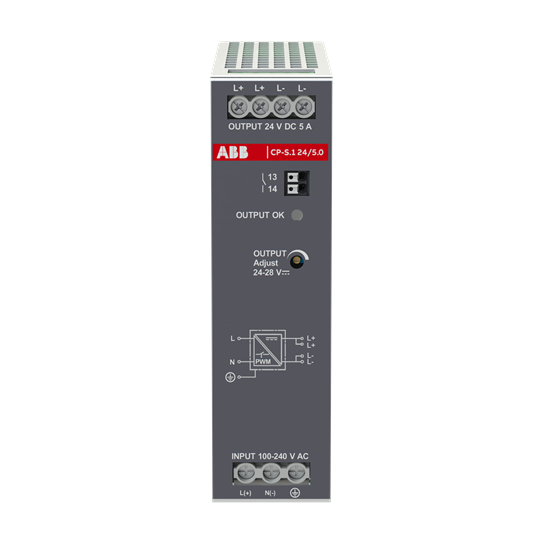

Netzteil In:100-240VAC/90-250VDC Out:DC 24V/5A
ABB STOTZ-KONTAKT
Produktinformationen Netzteil In:100-240VAC/90-250VDC Out:DC 24V/5A
CP-S.1-Netzteile: Hohe Effizienz und Zuverlässigkeit in kompakter Bauform. Die Reihe wurde für zahlreiche Anwendungen, einschließlich den Maschinenbau, entwickelt.
Die Reihe verfügt über eine integrierte Leistungsreserve von 150 % für fünf Sekunden und arbeitet mit einer Effizienz von bis zum 94 %.
Die neuen CP-S.1-Netzteile bieten einen Überhitzungsschutz und eine aktive Leistungsfaktorkorrektur, einen weiten zertifizierten AC- und DC-Eingangsbereich und umfassende weltweite Zulassungen, einschließlich Marine. Sie sind die bevorzugte Wahl für vielfältige industrielle Anwendungen.
| 1st secondary output voltage: | 24–24 V |
|---|---|
| 2nd secondary output voltage: | 0–0 V |
| 3rd secondary output voltage: | 0–0 V |
| Built-in height: | 129.4 mm |
| Built-in width: | 35.5 mm |
| Degree of protection (IP): | IP20 |
| Degree of protection (NEMA): | 1 |
| Depth: | 127 mm |
| Direct mounting possible: | No |
| Height: | 129.4 mm |
| Max. output current 1: | 7.5 A |
| Max. output current 2: | 0 A |
| Max. output current 3: | 0 A |
| Nominal value output current 1: | 5 A |
| Nominal value output current 2: | 0 A |
| Nominal value output current 3: | 0 A |
| Nominal value output voltage 1: | 24 V |
| Nominal value output voltage 2: | 0 V |
| Nominal value output voltage 3: | 0 V |
| Output voltage stabilized: | Yes |
|---|---|
| Performance level according to EN ISO 13849-1: | None |
| Power consumption: | 132 VA |
| Power output: | 120 W |
| Rated supply voltage AC 50 Hz: | 85–264 V |
| Rated supply voltage AC 60 Hz: | 85–264 V |
| Rated supply voltage DC: | 90–277 V |
| SIL according to IEC 61508: | None |
| Secondary voltage adjustable: | No |
| Short-circuit-proof: | Yes |
| Stabilized: | Yes |
| Suitable for distribution board: | No |
| Suitable for rail mounting: | Yes |
| Suitable for safety functions: | No |
| Type of electric connection: | Screw connection |
| Voltage type (supply voltage): | AC/DC |
| Wall mounting possible: | No |
| Width: | 35.5 mm |
