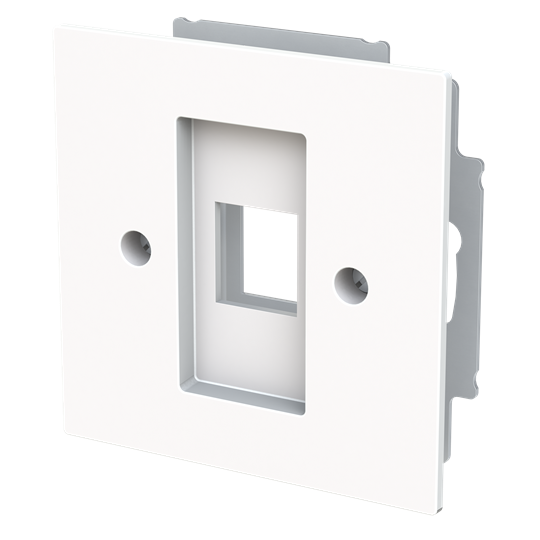

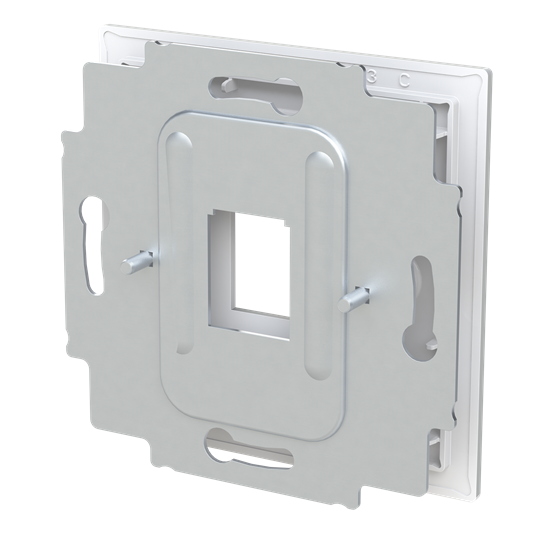

Zentralscheibe mit Tragring Modular-Jack 1-fach Busch-art linear®
Produktinformationen Zentralscheibe mit Tragring Modular-Jack 1-fach Busch-art linear®
| Anti-bacterial treatment: | No |
|---|---|
| Assembly arrangement: | Basic element with central cover plate |
| Colour: | White |
| Device depth: | 18.6 mm |
| Device height: | 71 mm |
| Device width: | 71 mm |
| Halogen free: | No |
| Impact strength: | IK03 |
| Imprintable label: | Without indication field |
| Luster terminal: | No |
| Material: | Plastic |
| Material quality: | Thermoplastic |
| Min. depth of built-in installation box: | 32 mm |
| Mounting method: | Flush-mounted |
| Number of modules (module system): | 0 |
| Outlet direction: | Straight |
| RAL-number (similar): | 9016 |
|---|---|
| Shielded buses: | No |
| Shielded housing: | No |
| Suitable for degree of protection (IP): | IP20 |
| Suitable for number of connectors: | 1 |
| Support ring: | No |
| Surface finishing: | Glossy |
| Surface protection: | Untreated |
| Type of fastening: | Mounting with screw |
| Utilization: | Other |
| With buses/couplings: | No |
| With dust cover: | No |
| With hinged lid: | No |
| With imprint: | No |
| With lighting: | No |
| With strain relief: | No |
Anmelden
Zubehör
Für Zentralscheibe 2561-xxx, 2561-02-xxx und Sockel 1812, 1866 EB, 1867 EB. Für Leiterquerschnitte von 0,12 mm² (AWG 26) bis 0,35 mm² (AWG 22). Designlinie: Plattform 63, Busch-Duro 2000® SI, Reflex SI, Busch-balance® SI, Busch-art linear®, future® linear, Busch-axcent®, solo®, pur edelstahl, carat®, Busch-dynasty®, Decento®, impuls Designlinie Variante: Busch-Duro 2000® SI, Busch-Duro 2000® SI Linear, Reflex SI, Reflex SI Linear, Busch-art linear®, Busch-art linear® - mit Dekorring, Busch-art linear® - Echtmaterial, future®, future® linear, Busch-axcent®, Busch-axcent® pur
Für Zentralscheibe 2561-xxx, 2561-02-xxx und Sockel 1812, 1866 EB, 1867 EB. Für Leiterquerschnitte von 0,12 mm² (AWG 26) bis 0,35 mm² (AWG 22). Designlinie: Plattform 63, Busch-Duro 2000® SI, Reflex SI, Busch-balance® SI, Busch-art linear®, future® linear, Busch-axcent®, solo®, pur edelstahl, carat®, Busch-dynasty®, Decento®, impuls Designlinie Variante: Busch-Duro 2000® SI, Busch-Duro 2000® SI Linear, Reflex SI, Reflex SI Linear, Busch-art linear®, Busch-art linear® - mit Dekorring, Busch-art linear® - Echtmaterial, future®, future® linear, Busch-axcent®, Busch-axcent® pur
